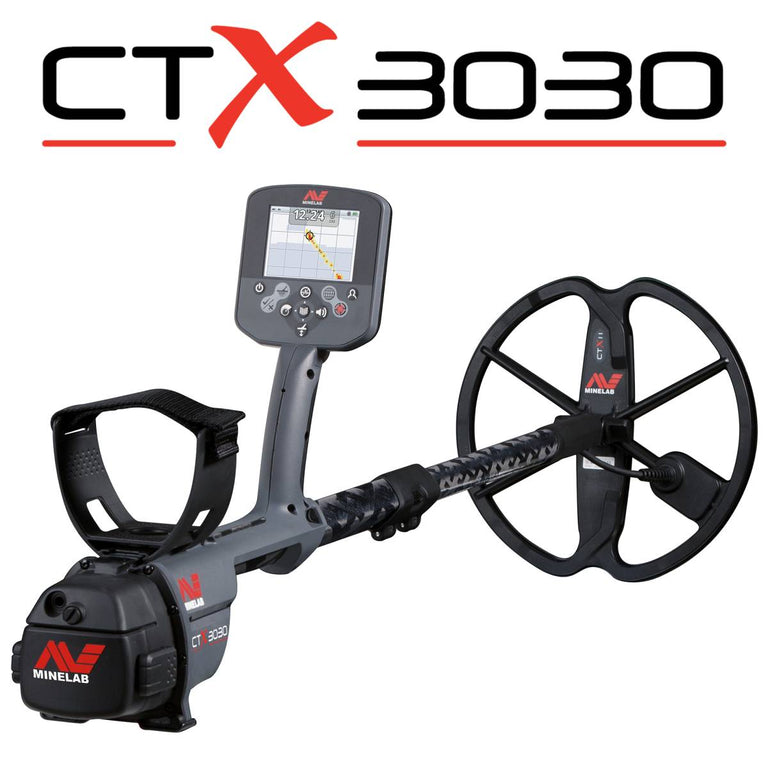

CTX 3030 Technical Specifications
Category | Details |
---|---|
Application | Coin, Relic, Jewellery & Beach (waterproof 10ft) |
Technology | FBS 2, Smartfind 2, GPSi, Wi-Stream |
Frequency/Transmission | Multiple frequencies: 1.5 - 100kHz |
Coil (standard) | 11-inch waterproof Double-D smart coil |
Audio Output | Built-in speaker, standard ¼-inch non-waterproof socket, custom waterproof socket (Minelab accessory headphones only) |

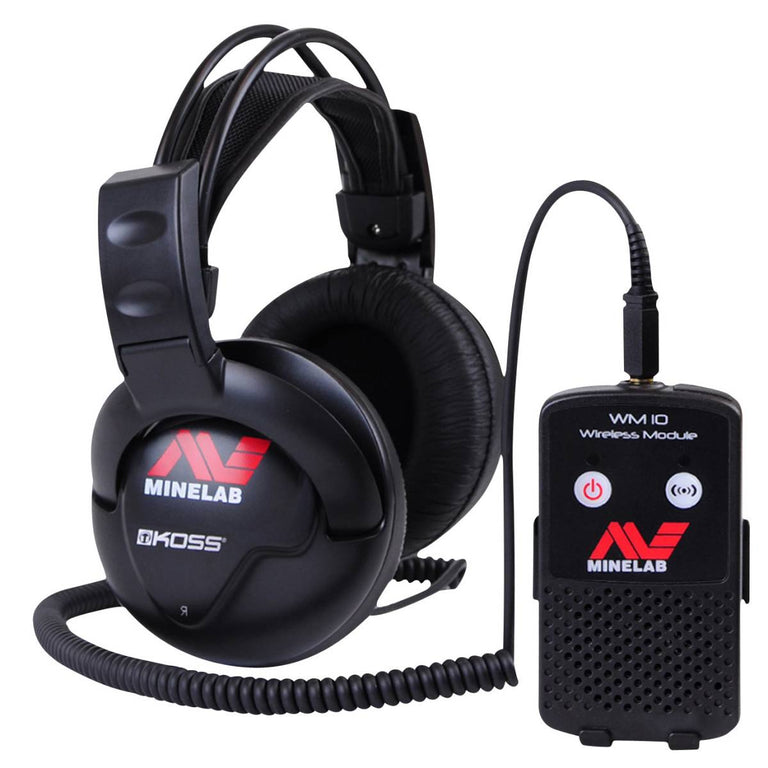

Headphones Supplied | KOSS UR30 (100 ohm) supplied with detector (non-waterproof) |

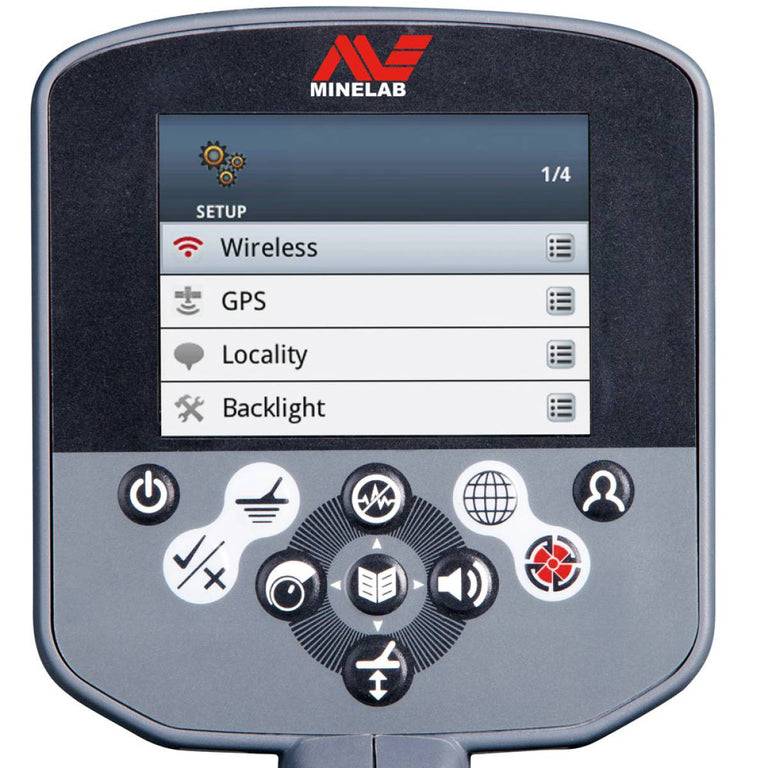

Visual Display | Full colour LCD with backlight and adjustable brightness (1–10) |
Backlight | Yes |
Product ID | 88961 |
USB Connectivity | USB interface for XChange 2 PC software |
Memory | Settings saved automatically while detecting and remain until changed or reset |
Depth Indication | Accurate gauge active in normal detecting and Pinpoint mode |
Detect Modes | 10 fully customisable, including 5 preset (Coins, Beach, Relic, Silver & High Trash) |
Discrimination | Smartfind 2TM 2 dimensional colour discrimination: Ferrous 35, Conductivity 50 - 20 fully customisable discrimination patterns (2 per Search Mode) |
Audio tone | Customisable Tone ID Profiles - 1, 2 ferrous (Fe), 2 conductive (Co), 4 Fe, 4 Co, 35 Fe, 50 Co or Combined |
Audio Type | Normal, Long, Smooth & Pitch Hold |
Ground Balance | Auto Compensation and Auto Ground Balance |
Pinpoint | Non-motion with modulated audio and visual crosshair on LCD, 2 modes: normal and sizing |
Sensitivity Adjust | Auto and Manual (1–30) |
Tune / Noise Cancel | Manual & Automatic (11 channels) |
Threshold | Level adjustment (1–50), Pitch adjustment (1–30) |
Target Volume Adjust | Limit & Gain (1 to 30) |
Battery | Li-ion pack with fast charger. 12 V car adapter supplied with Standard Pack only |
Low battery alert | Audio & visual indication |
Length | Min 37 in. (940 mm) – Max 55.3 in. (1405 mm) |
Weight | 5.20 lbs (2.36 kgs) including Li-ion battery pack |
Warranty | 3 years control box & coil |
